Thermo King SV-1000
❄️ Thermo King SV-1000 – Premium Cooling Power for Larger Transport Needs
The Thermo King SV-1000 stands at the top of the SV Series, delivering industry-leading cooling performance for large box trucks and medium-duty refrigerated vehicles. Built for durability, reliability, and high efficiency, this model is engineered to handle heavy loads of fresh or frozen cargo in the most demanding conditions.
If you’re looking for a thermo king transport refrigeration unit for box truck that combines robust output, smart design, and long-term savings, the SV-1000 is your ideal solution.
🌟 Key Features of SV-1000
🛡️ Thermo King’s proven compressor for reliable operation over time
💪 8500 W cooling at 0°C and 4550 W at -20°C for deep freeze
🌡️ Wide temperature range of -25°C to +30°C ensures product safety
❄️ Refrigerant: R-404A – environmentally responsible
🚛 Ideal for large-volume box truck refrigerated transport
🔧 Optimized design allows easy installation and maintenance
🌀 High airflow evaporator ensures even temperature distribution
💼 Built-in flexibility for electric standby and multi-use logistics
| Parameter | SV-1000 |
|---|
| Cooling Capacity (0°C) | 8500 W (Engine Drive) |
| Cooling Capacity (-20°C) | 4550 W (Engine Drive) |
| Temperature Range | -25°C to +30°C |
| Refrigerant | R-404A |
| Compressor | Thermo King Robust Design |

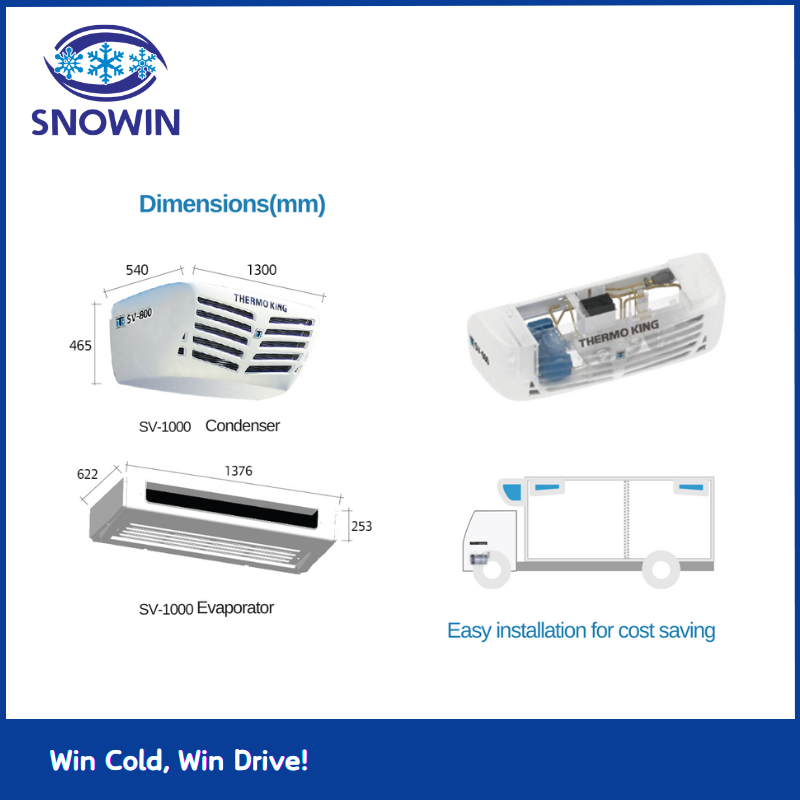

| Condenser Dimensions (mm) | 1300 × 540 × 465 |
| Evaporator Dimensions (mm) | 1376 × 622 × 253 |
| Electric Standby Option | Available |
| Recommended Cargo Volume | 25 – 32 m³ (Large Box Trucks) |
| Airflow Output | Approx. 2000 m³/h |
| Weight | Condenser: ~55 kg, Evaporator: ~25 kg |
🚚 Best Applications:
- 🥩 Frozen and refrigerated food delivery
- 🧬 Medical & pharmaceutical transport with precise temp control
- 🛒 Supermarket and cold chain distribution
- 📦 Reliable solution for box truck refrigeration
- 💼 Trusted by logistics companies needing thermo king transport refrigeration units for sale at competitive prices
Looking to invest in a premium refrigeration solution? The SV-1000 provides outstanding performance with a strong return on investment. Ask us today about the Thermo King transport refrigeration units price and discover why fleets worldwide rely on the SV series.
📩 Message us now to request a quote or technical brochure.
| Model | SV-400 | SV-600 | SV-700 | SV-800 | SV-1000 |
|---|---|---|---|---|---|
| Temp. Range | -25°C to +30°C | -25°C to +30°C | -25°C to +30°C | -25°C to +30°C | -25°C to +30°C |
| Refrigerant | R-404A | R-404A | R-404A | R-404A | R-404A |
| Cooling @ 0°C (Engine) | 4,360 W | 5,060 W | 6,700 W | 7,500 W | 8,500 W |
| Cooling @ 0°C (Electric) | 3,800 W | 4,720 W | 5,780 W | 6,570 W | 6,570 W |
| Compressor | TK16 | TK16 | TK21 | TK21 | TK31 |
| Cylinder / Displacement | 6 / 163cc | 6 / 163cc | 10 / 215cc | 10 / 215cc | 10 / 313cc |
| Blower Airflow | 1500 m³/h | 2500 m³/h | 2500 m³/h | 3000 m³/h | 3000 m³/h |
| Voltage | 12V / 24V DC | 12V / 24V DC | 24V DC | 24V DC | 24V DC |
