IcePro400 Truck Freezer Unit

IcePro400 Truck Refrigeration Unit

SnowinCold is a manufacturer specialized in box truck refrigeration unit for sale to world. We design and produce truck freezer unit by ourselves. So we can give customers a more customized service to meet their demands. Our high standard reefer unit for box truck get market good feedback. As for the IcePro400 with very reliable working performance get customers like!

It is designed for 18-22m³or 6-8 meters/20-26 feet length larger trucks, ideal for long-distance transport and heavier cold chain loads. Powerful cooling capacity that ensures temperature stability across longer transportation, suitable for transporting fresh produce and perishable goods.

Inquiry Download PDF Contact us Whatsapp

Features
Technical Data
Application
Video
Faqs

Designed for 18-22m³or 6-8 meters/20-26 feet length medium-sized trucks and medium-distance deliveries.

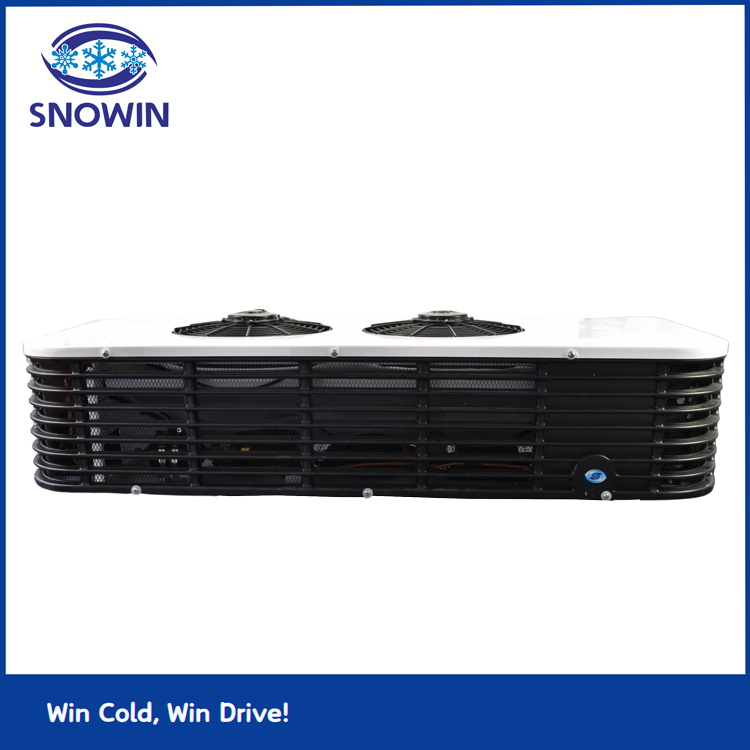

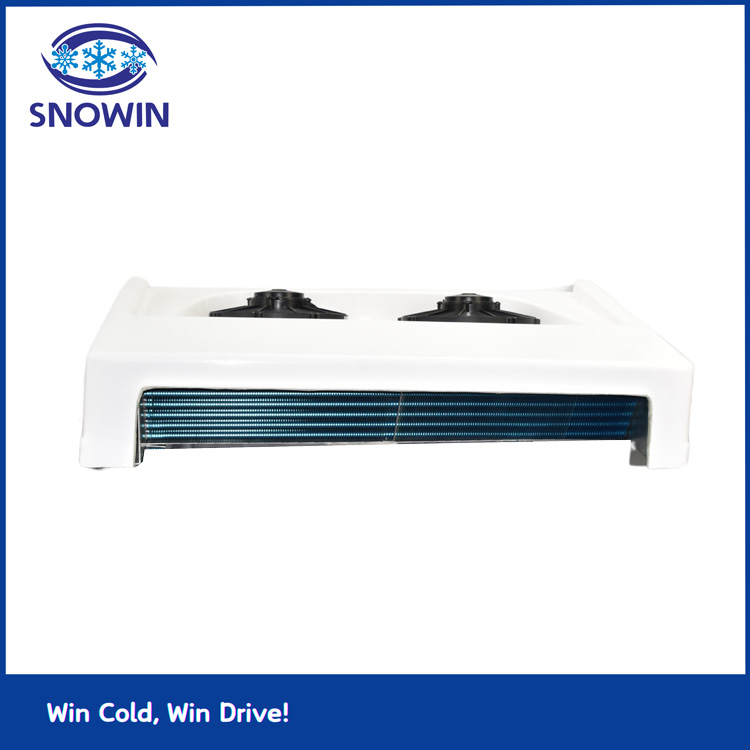

Double condenser fan and double evaporator blowers.
Engine-driven compressor, high efficient power source.
Stable and reliable working performance.
Modular, compact and light-weight design, reduce energy consumption.
Electric standby system DC 24V or AC 220V making the refrigeration system without stopping.
R-404A Refrigerant for frozen applications.
Temperature range -30℃ to 25℃ adjustment.
Full-Dot LCD（Full-Dot Liquid Crystal Display）, clearly and easily control the temperature.
Automatic hot gas defrost system.
Optional heating package prevent fresh goods from freezing.
Lower maintenance costs: With a simple operating principle, engine-driven refrigeration systems typically require less maintenance and are less likely to malfunction, reducing repair costs.

Cooling Capacity	0℃/+38℃	3850W	13136Btu
	-18℃/+38℃	2850W~5100W	7336btu
Temperature		-18℃~+30℃
Voltage		DC12V/24V
Defrosting		Hot gas defrosting
Evaporator Air Volume		1900m³/h
Refrigerant		R404a
Compressor	Brand	Anxinthermo-carrier-QP
	Model	QP16/carrierTM16
	Dis	163cc/r
Condenser	Coils	Parallel flow
	Fan Qty.	2 Pcs
	Size	1300X510X340(MM)
	Weight	35KG
Evaporator	Coils	Copper tube and fin
	Fan Qty.	2 Pcs
	Size	1000X630X450(MM)
	Weight	20KG
	Application	18~22m³ truck box
		-15℃ to 18℃:15~18m³	-10℃to 0℃:18~22m³
