Electric Refrigerated Three-Wheeler
Electric Refrigerated Tricycle – Flexible Cold Chain Transport Solution
Looking for a compact and efficient electric refrigerated three-wheel vehicle for your cold chain logistics? Whether you’re delivering frozen goods, fresh produce, or operating an ice cream cart, our electric refrigerated tricycle is your ideal last-mile solution. We offer both complete refrigerated tricycles and customizable cold boxes or refrigeration units that can be fitted on your own vehicle.
🔧 What We Offer:
You can choose from:
- ✅ A complete electric refrigerated three-wheel car
- ✅ A standalone cooling unit (DC48V / 60V / 72V)
- ✅ A custom-matched insulated cold box
- ✅ Individual vehicle chassis or body for your local needs
🚚 Product Highlights:

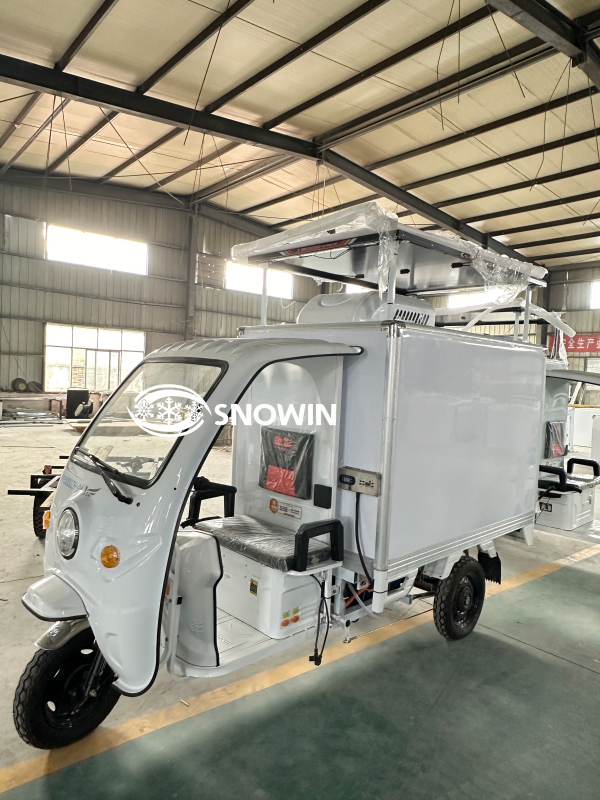

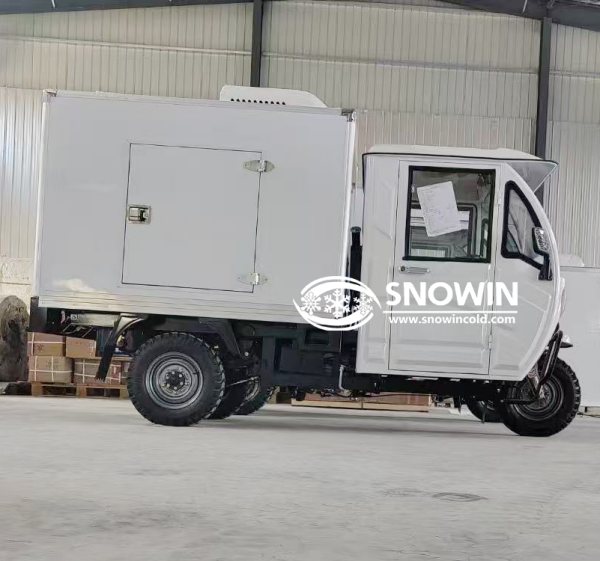

🛻 Vehicle Body & Frame
- Durable and compact body, ideal for navigating urban alleys
- Five-bend reinforced frame with heavy-duty suspension
- Front and rear bumpers, high/low speed gears, and powerful differential motor
- Optional sizes and power configurations to match your local conditions

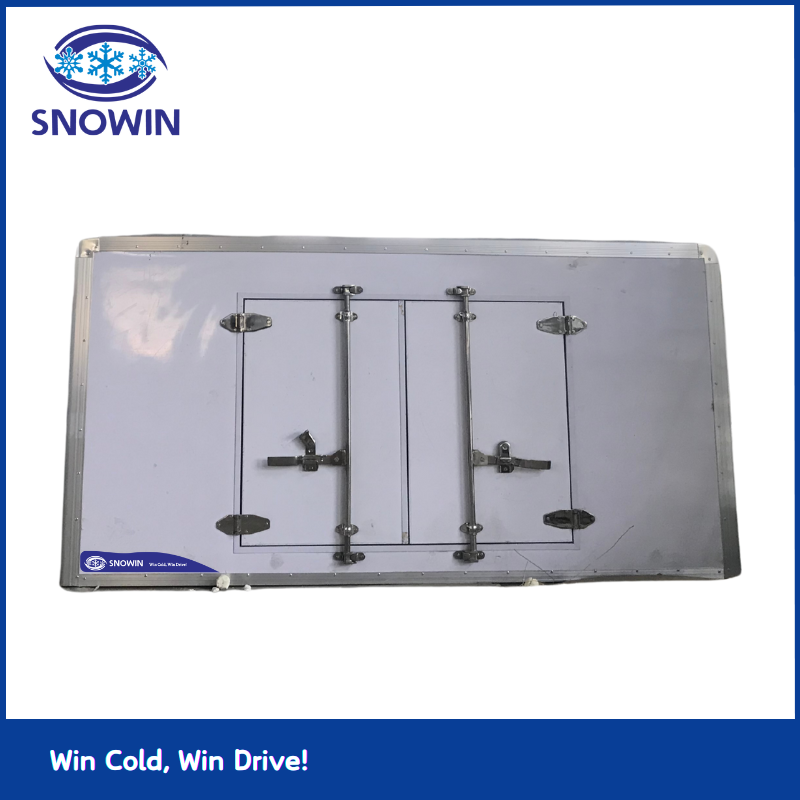

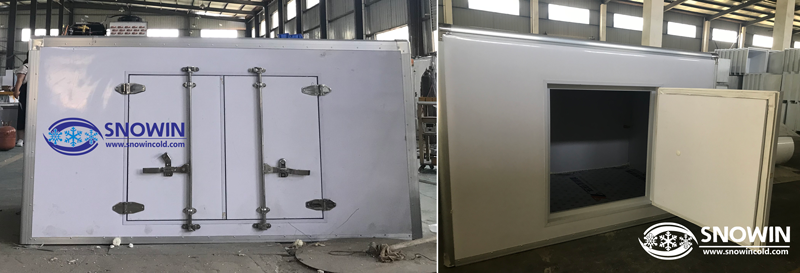

❄️ Cold Box Specifications
- Material: Color steel or CFRT skin + 75mm PU foam insulation
- Optional finishes: FRP or stainless steel skin
- Volume: from 970L to 1800L depending on model
- Customizable size based on vehicle type

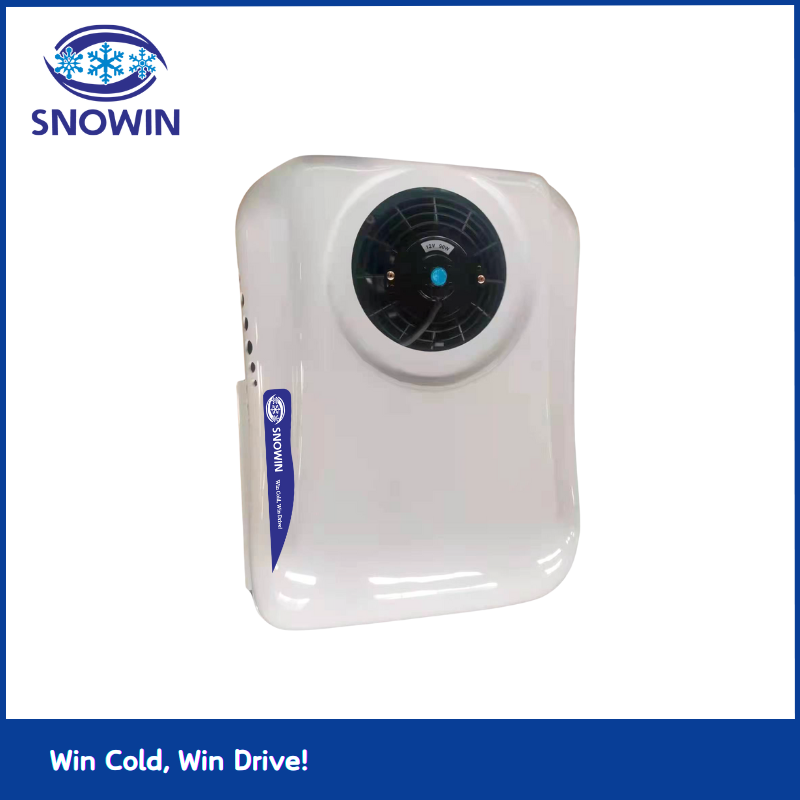

🧊 Refrigeration Unit
- Voltage: DC48V / DC60V / DC72V
- Temperature Range: -30℃ to +25℃
- Energy-efficient DC inverter compressor
- No fuel required; 100% battery-driven
- Low maintenance, strong anti-vibration, tilt-resistant
🔋 Battery System (Optional)
- Compatible with lead-acid or lithium battery systems
- Optional solar panel or battery swapping system available
| Model No. | Vehicle Size (mm) | Box Volume | Cooling Unit | Temp. Range |
|---|---|---|---|---|
| SW-970LPlus | 3000×1000×1750 | 970L | DC48V, 650W | 0~20℃ |
| SW-970L | 3000×1000×1750 | 970L | DC48V, 320W | 8~5℃ |
| SW-970LPlus | 3300×1200×1950 | 1800L | DC48V, 650W | 0~20℃ |
| SW-970L | 3300×1200×1950 | 1800L | DC48V, 320W | 8~0℃ |
Application Scenarios:
- Frozen food and dairy delivery
- Ice cream trike freezer for vending
- Refrigerated tuk tuk for urban logistics
- Small-scale pharmaceutical cold chain
- Fresh produce transportation for local markets
Our electric refrigerated three-wheels for sale have been widely used by food distributors, cold chain startups, and mobile ice cream vendors worldwide.
