ClimaX2800 Truck Roof AC Unit
Air conditioner for truck sleeper is a main and necessary electrics for truck drivers nowadays. SnoWin Industry is professional in the truck sleeper air conditioners for over 10 years.
The ClimaX2800 is truck roof ac unit with an ultra-slim body design, specially designed for semi truck, and can be easily installed on the back or top of a truck head. That is to say, the condenser can be placed vertically or horizontally.
For the cooling capacity, the ClimaX2800 truck topper ac unit has 2800W/9500BTU can achieve to cool down the cab temperature fast and efficiently even in the 50℃ ambient temperature.
Key features of ClimaX2800 AC Unit for Truck Cab
- High Cooling Capacity

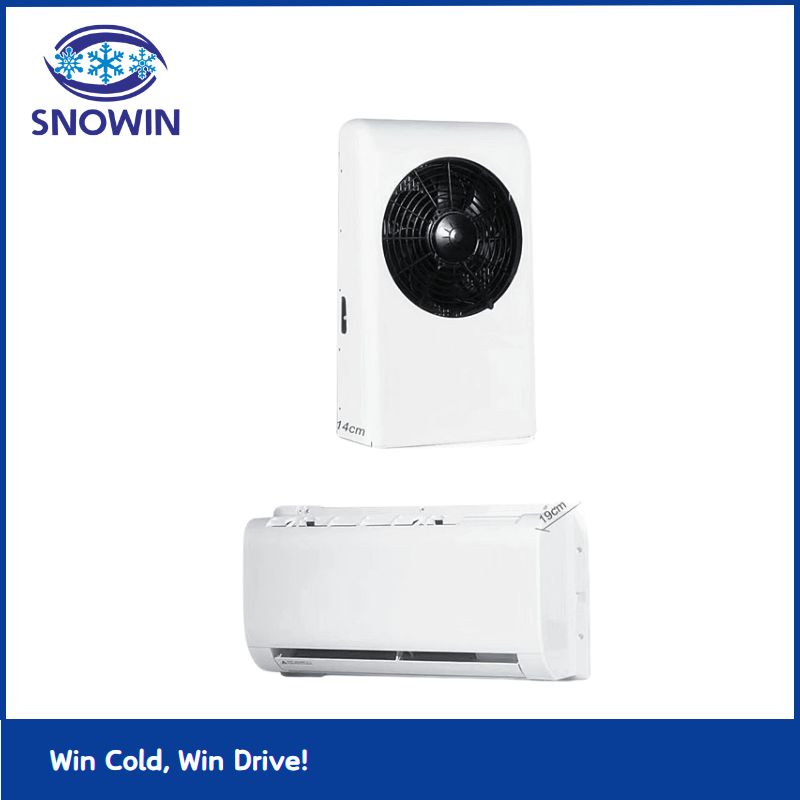

- Ultrathin Design 14mm thickness of Condenser
- Powder-coated exterior shroud
- Energy Efficient with ECO/MAX/Fan/cooling Mode
- Quiet Operation: Under 60 dB
- Compact Design

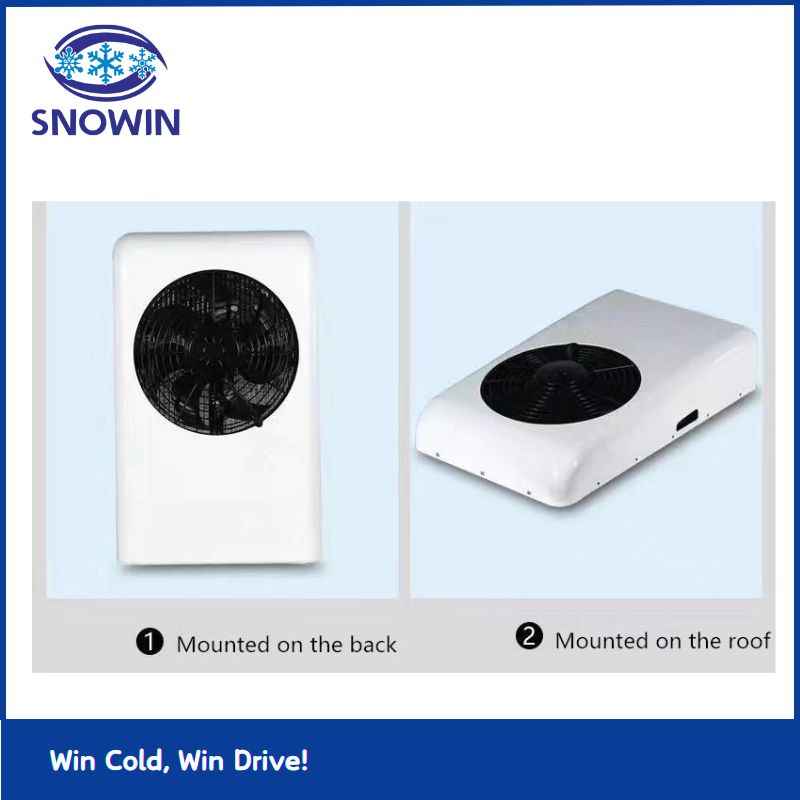

- 2 installation ways: Condenser can be install vertical or horizontal same time
- Easy Installation and Removal
- Advanced LCD Control Panel and Remote
- One-Year Warranty
| Model | ClimaX2800 |
| Voltage | DC12V/24V |
| Cooling capacity | 2800W/9500BTU |
| Rated current | DC12V 50A DC24V29A |
| Power | 300-850W |
| Air volume | 600m³/hr |
| Time of endurance | 8 hours |
| Compressor mode | DC Scroll Compressor |
| Refrigerant | R134a 600g |
| Hole size(mm) | 458*330 |
| Dimensions(mm) | 6640*440*140mm(Outdoor unit); 460*310*145mm (Indoor Unit) |
| Gross Weight | 4kg (Interior unit) 18kg (Exterior unit) |
Advantages of Snowin Industry Parking Truck Air Conditioners
- This truck cabin ac unit is specially designed for trucks, with multiple installation holes, and can be applied to different models, such as Mercedes-Benz, MAN, Volvo, ISUZU, etc.
- This truck driver ac unit adopts split type scroll compressor with intelligent frequency conversion, The compressor is also mounted on a spring bushing, which helps to dampen vibrations on the road and prolong service life. Equipped with better electrical components, circuits and smarter operating logic. This means the compressor can adapt to freezing points faster, detect error codes better and motor over current faster, resulting in less supervision and downtime.
- Condenser fans brings dust cover.
- Copper tube aluminum fin design, large size anti-frost technology can effectively prevent frost accumulation, which can not only maintain the cooling effect, but also increase the operating life of the system. Good stable performance, not prone to leakage, blockage or corrosion. Stable evaporator can ensure the continuous operation of the ac unit for truck and avoid frequent maintenance and replacement.
- Adopt well-known brand Sanhua expansion valve ：Precisely adjust the refrigerant flow to avoid inefficiencies caused by too much or too little refrigerant. Sanhua expansion valves can withstand high pressure fluctuations, and their internal structure design can effectively prevent impurities or dirt in the refrigerant from causing blockage. This is especially important for truck air conditioning systems, because contaminants in the system may affect the normal operation of the expansion valve and cause system efficiency to decrease.
- Snowin Industry pay attention to detail of the product. Washers are added at the position of the harness holes to prevent the harness from being worn. All harnesses are fixed with clamps. The around of evaporator core is sealed with sponge strips to prevent water from penetrating.
- Designed with automatic swinging air outlet, Control panel with button control, LED light strip, Return air outlet filter can be removed and cleaned.
- warranty: Other parts of Air Conditioner is 1 year warranty, compressor is 2 years warranty
