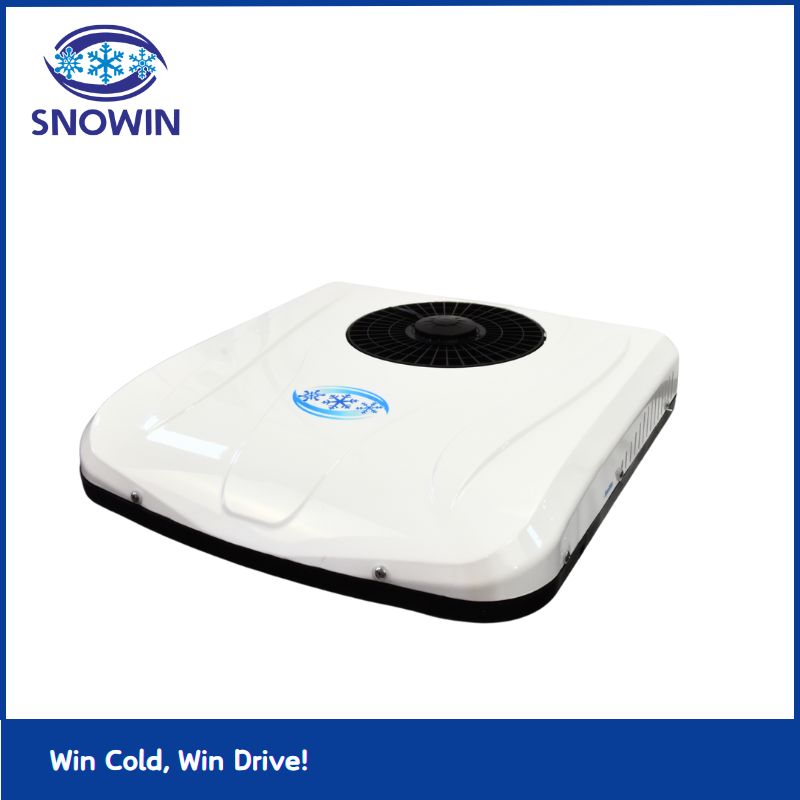

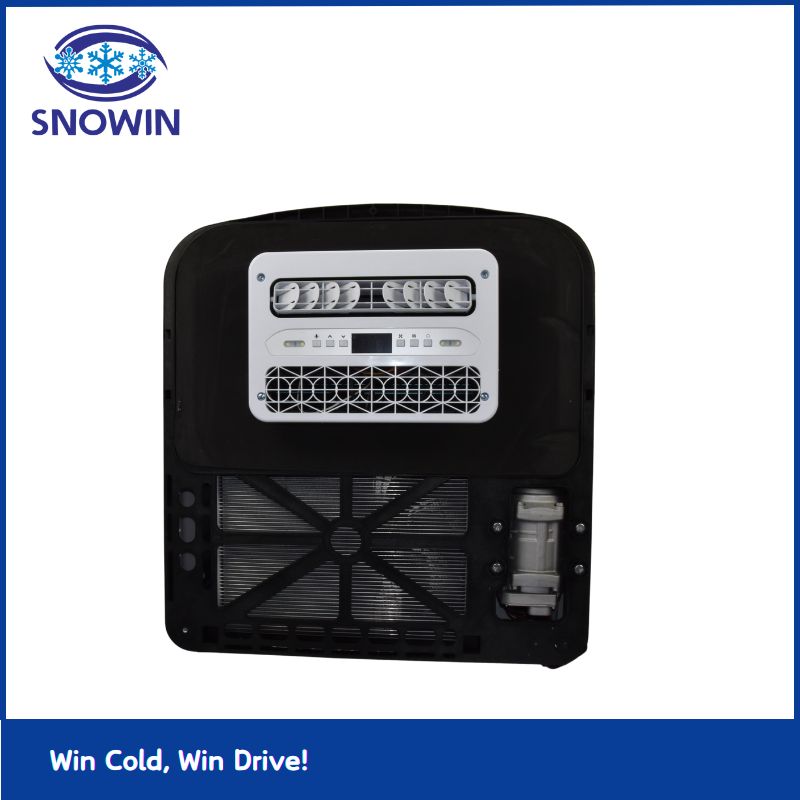

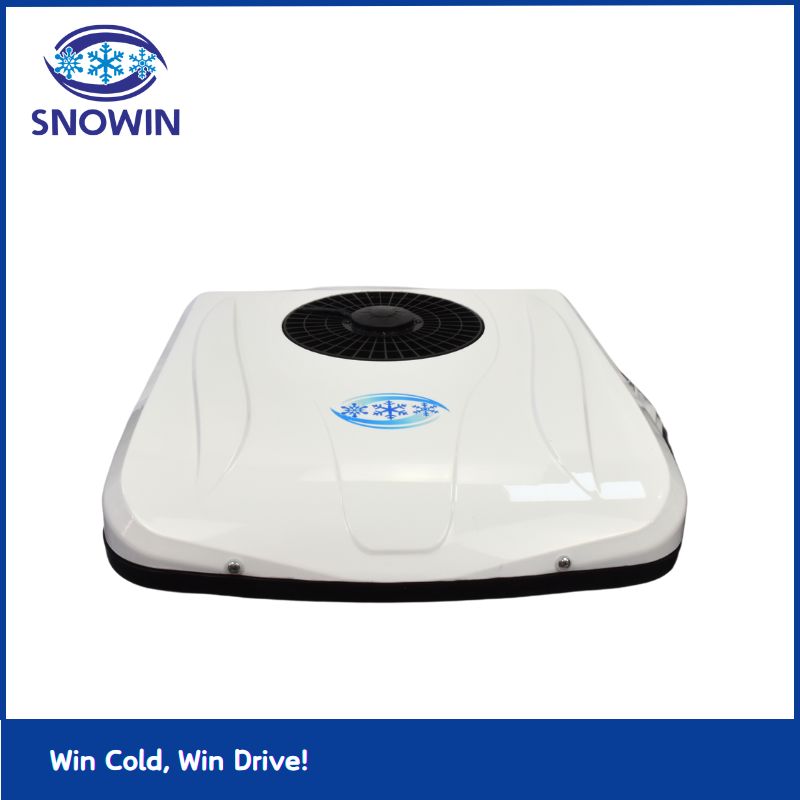

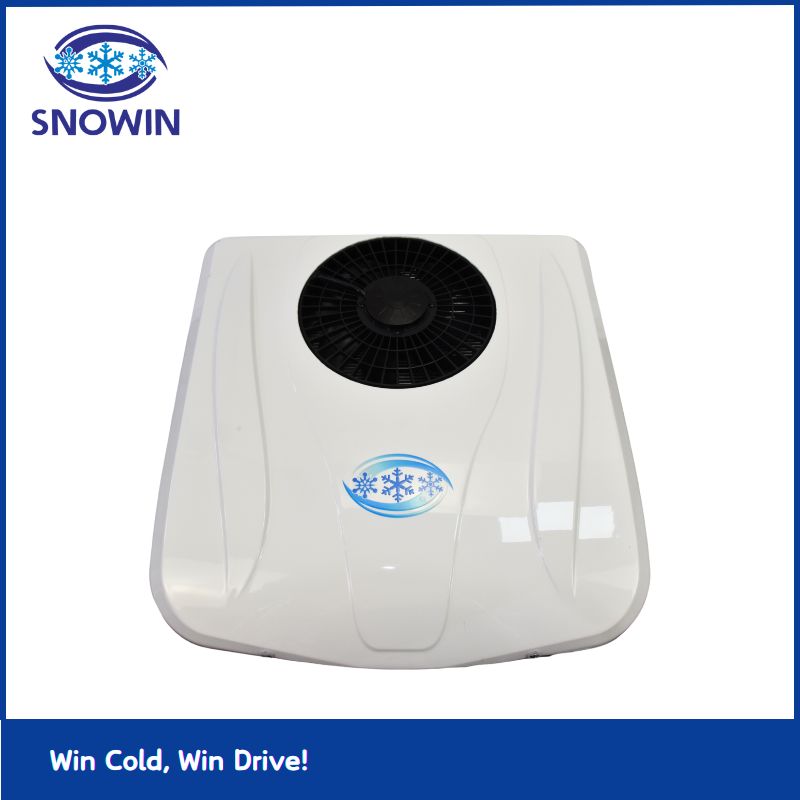

ClimaT2200Pro Parking Truck Air Conditioner
SnoWin Industry is a leading manufacturer of transport refrigeration and truck ac unit and its popular ClimaT2200Pro small truck ac units model features a lightweight design and a low-profile aerodynamic housing. The ClimaT2200Pro is powerful cooling performance with a silent fan and automatic air vent for optimal air circulation.
Key Features of ClimaT2200Pro Parking Truck AC Unit
● Lightweight but powerful
● Air conditioner with Timing function
● Lowest setting temperature 1℃

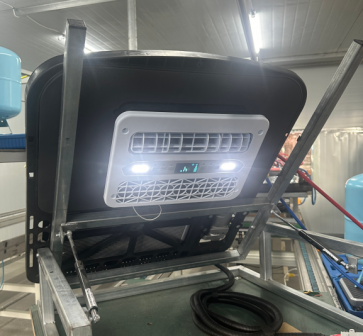

● LED Light
● Automatic air swing
| Model | ClimaT2200Pro |
| Voltage | DC12V/24V |
| Rated current | DC12V 50A/ DC24V 29A |
| Power | 750W |
| Air volume | 450m3/h |
| Weight(kg) | 20kg |
| Time of endurance | 8 hours |
| Compressor mode | Scroll Compressor |
| Refrigerant | R134a 320g |
| Hole size(mm) | 385*270 or 350*230 |
| Dimensions(mm) | 774*700*130 |
| Gross Weight | 28kg |
| Package size | 820*790*293 |
| Container Loading 20GP/40GP | 115/335PCS |
Advantages of Snowin Industry Parking Truck Air Conditioners ClimaT2200Pro
- Reasonable internal design, compact size and light weight, the whole machine is 28KG

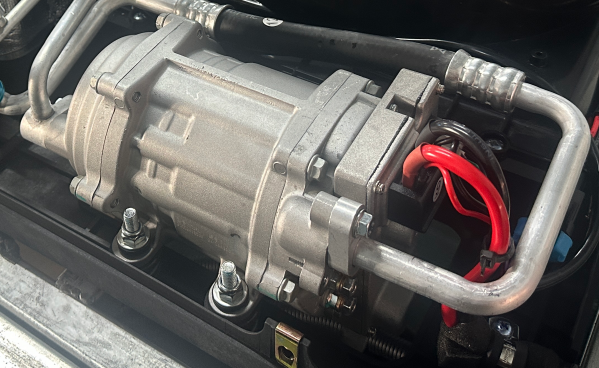

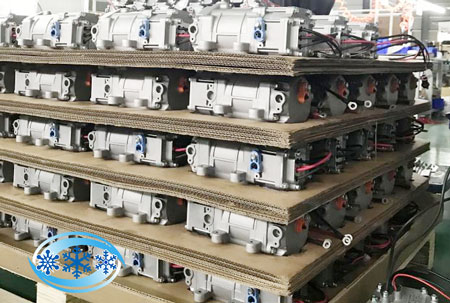

- Integrated scroll compressor: We all know that the compressor is the heart of the air conditioner and is very important. Therefore, we use an integrated scroll compressor with low noise, small vibration and longer service life. At the same time, the compressor control panel is detachable, easy to replace and repair, saving maintenance costs during long-term use.

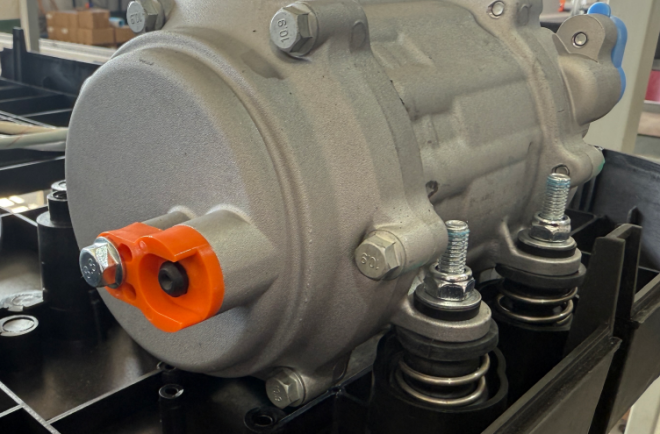

- Four spring shock absorbers are designed in the compressor, which greatly reduces the wear of the compressor and the noise during use.

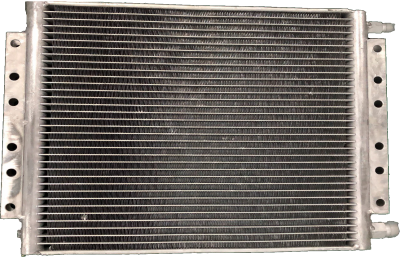

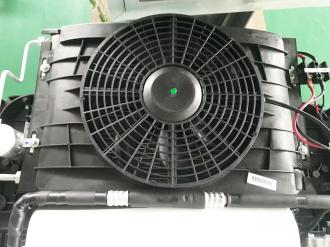

- large-size condensers with Micro chanel parallel flow cores for fast heat dissipation.
The function of condenser is to dissipate the heat of the refrigerant from the air conditioning system to the external environment, so its heat dissipation efficiency is crucial.
The surrounding materials are made of aluminum alloy and anti-corrosion coating, which is suitable for operation in high temperature environments. Especially when driving for a long time, the truck air conditioning condenser is often exposed to the external environment, especially factors such as moisture and rain, which may cause corrosion, so the corrosion resistance of the condenser is very important.
- Copper tube aluminum fin design, large size 46*10*5cm, anti-frost technology can effectively prevent frost accumulation, which can not only maintain the cooling effect, but also increase the operating life of the system. Good stable performance, not prone to leakage, blockage or corrosion. Stable evaporator can ensure the continuous operation of the air conditioning system and avoid frequent maintenance and replacement.
- Adopt well-known brand Sanhua expansion valve ：Precisely adjust the refrigerant flow to avoid inefficiencies caused by too much or too little refrigerant. Sanhua expansion valves can withstand high pressure fluctuations, and their internal structure design can effectively prevent impurities or dirt in the refrigerant from causing blockage. This is especially important for truck air conditioning systems, because contaminants in the system may affect the normal operation of the expansion valve and cause system efficiency to decrease.

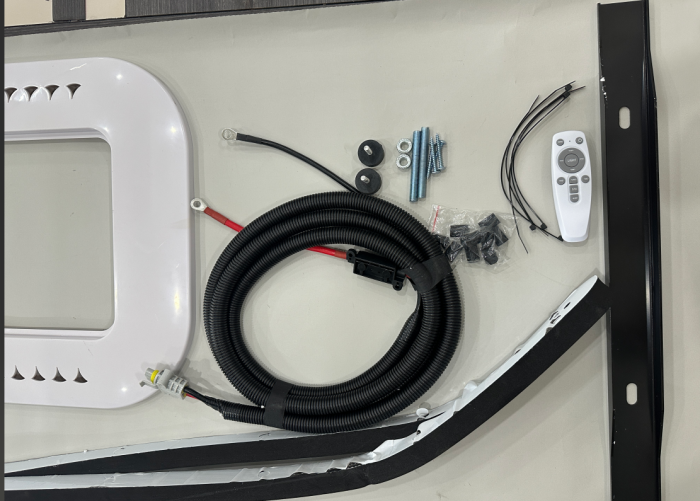

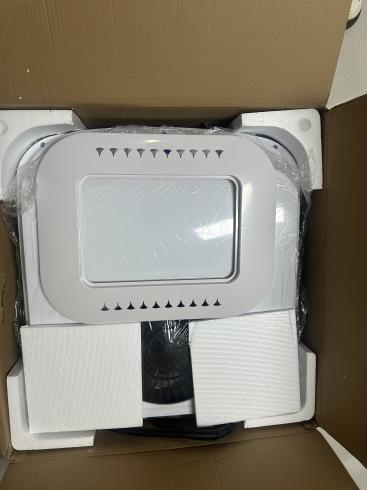

- Package display：All parts of installation and air conditioner have been included.
- warranty: Our parts of Air Conditioner is 1 year warranty, compressor is 2 years warranty
