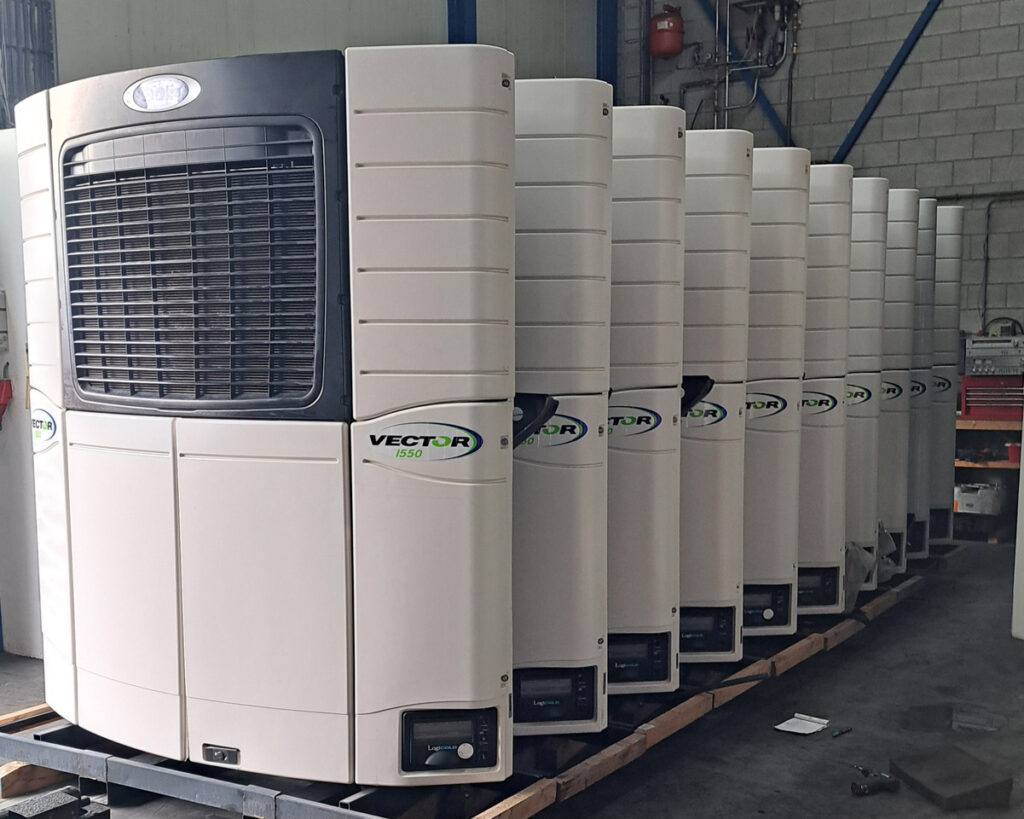

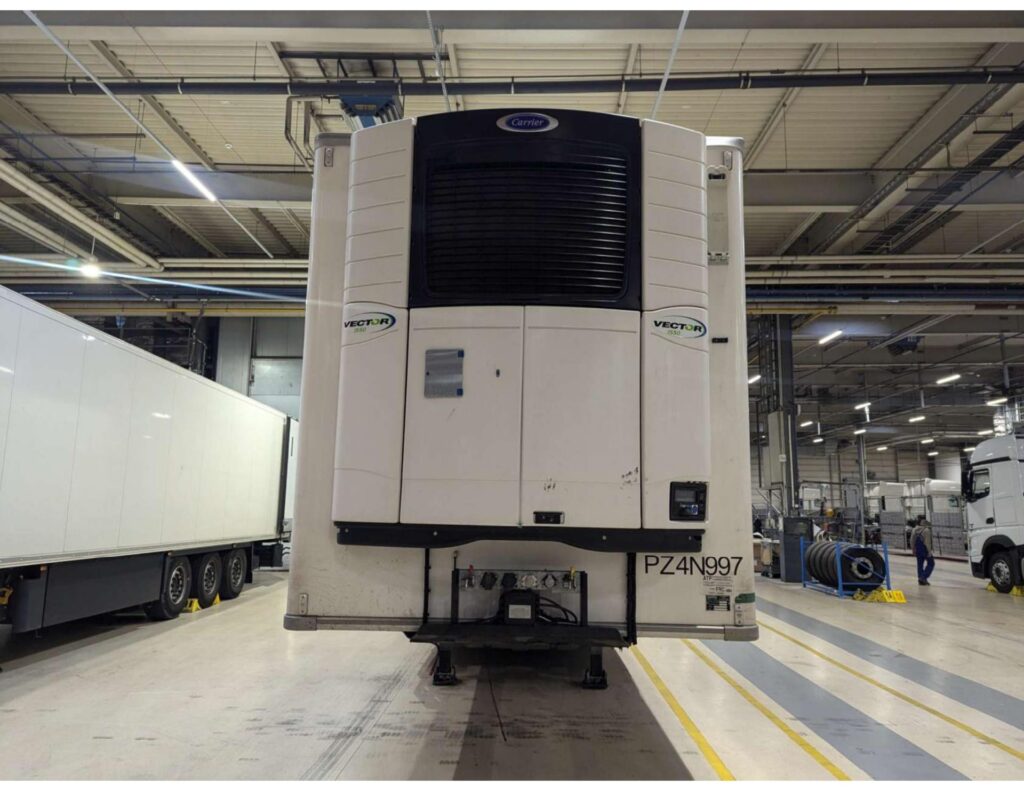

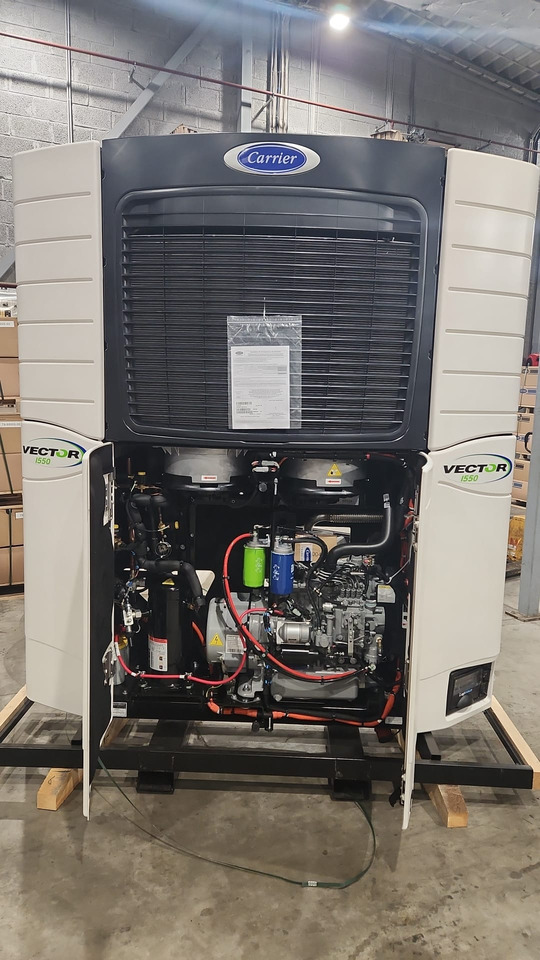

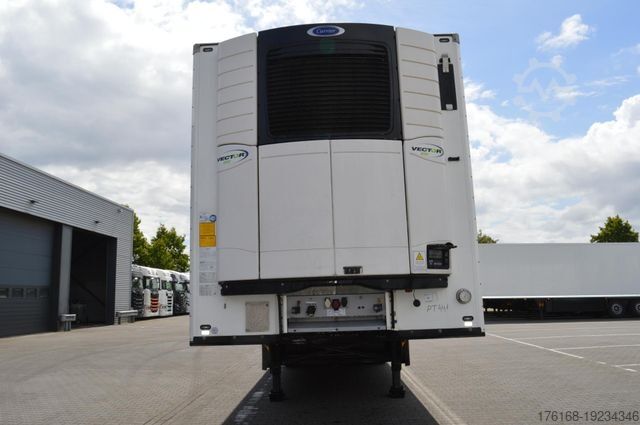

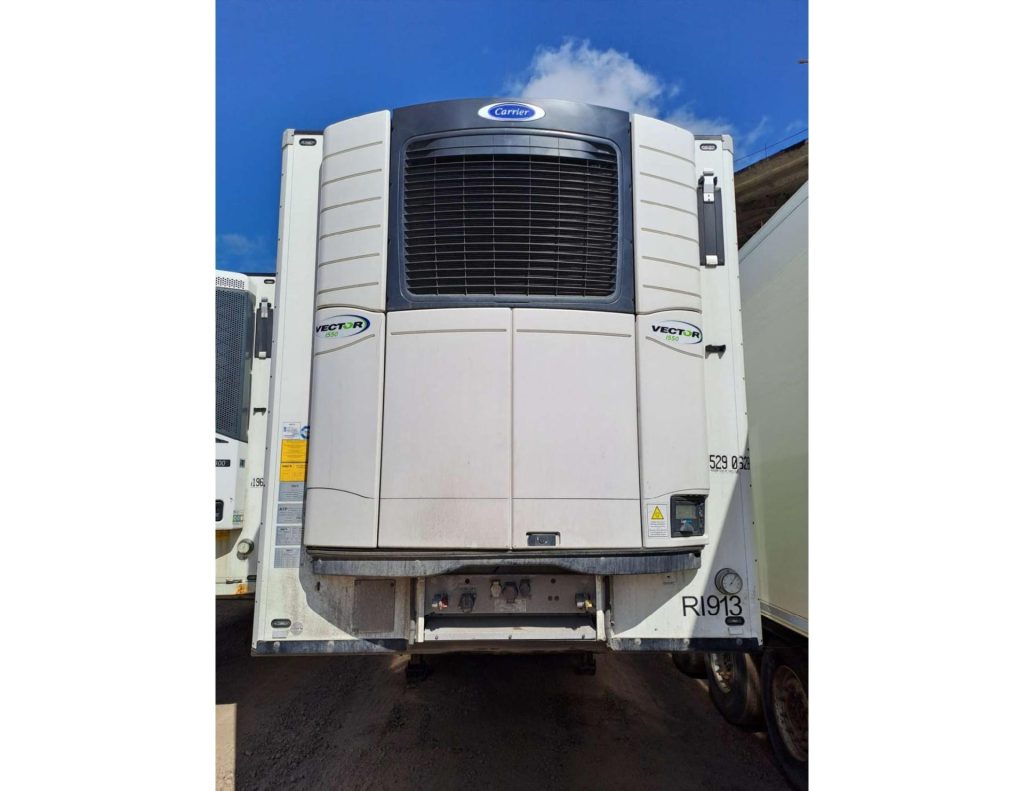

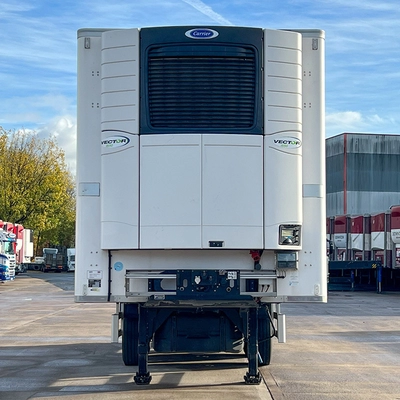

Carrier Transicold Vector 1550
The Carrier Transicold Vector 1550 is a high-performance trailer refrigeration unit designed for heavy-duty semi-trailer applications, offering unmatched cooling power and efficiency for global cold chain logistics. With a nominal cooling capacity of 15,340W (Diesel – High Speed) and ATP M1027 compliance, this unit ensures precise temperature control for frozen, chilled, or perishable goods even in extreme climates. Featuring Carrier’s advanced scroll compressor (Model ZF19) and eco-friendly R452A refrigerant, the Vector 1550 combines reliability, sustainability, and low-noise operation for seamless integration into modern fleets.
Key Features:
- Ultra-High Cooling Power: 15,340W (0°C/30°C) and 8,280W (-20°C/30°C) on diesel.
- Dual Power Modes: Diesel and 400V/3-phase standby (12,990W cooling) for continuous operation.
- Low Noise Design: Sound pressure as low as 62.6 dB(A) (Standby), ideal for urban environments.
- Compact & Durable: Dimensions (2,050×430×2,227mm) and 706 kg weight for easy installation.
- Eco-Friendly: R452A refrigerant (5 kg charge) with reduced carbon footprint.
Why Choose the Supra 1250?
- ATP-Certified: Meets global cold chain standards for perishables and pharmaceuticals.
- Durable Design: 1,123 cm³ CT3-69TV engine with 1,000-hour maintenance intervals.
- Energy Efficiency: Dual power modes reduce operational costs and environmental footprint.
| Parameter | Value |
|---|---|
| Cooling Capacity (Diesel) | 15,340W (0°C/30°C) |
| 8,280W (-20°C/30°C) | |
| Cooling Capacity (Standby) | 12,990W (0°C/30°C) |
| 7,240W (-20°C/30°C) | |
| Heating Capacity | 8,500W (Diesel) |
| Airflow | 5,600 m³/h (Diesel) |
| Weight | 706 kg |
| Dimensions | 2,050×430×2,227 mm |
| Sound Pressure | 71.5 dB(A) (High Speed) |
| Refrigerant | R452A (5 kg) |
| Compressor | ZF19 Scroll |
Ideal For:
- Global frozen food transport (seafood, pharmaceuticals, industrial meats).
- High-volume perishable goods logistics (floral, organic produce).
- Temperature-critical medical and biotech shipments.
- Mega-fleets requiring multi-temperature capabilities.
- Businesses prioritizing eco-friendly refrigeration solutions.
- Transport in extreme temperatures (-20°C to +40°C).
| Item | Vector 8500 | Vector 8700 |
|---|---|---|
| Condenser Dimensions | 76.4″ x 85.7″ x 22.8″ (1,940 x 2,176 x 579 mm) | 76.4″ x 85.7″ x 22.8″ (1,940 x 2,176 x 579 mm) |
| Evaporator Dimensions | 66.3″ x 45.2″ x 8.2″ (1,684 x 1,149 x 280 mm) | 66.3″ x 45.2″ x 8.2″ (1,684 x 1,149 x 280 mm) |
| Body Opening | 66.8″ x 46.0″ (1,696 x 1,168 mm) | 66.8″ x 46.0″ (1,696 x 1,168 mm) |
| Approximate Weight | 1,810 lb (820 kg) including electric standby Fuel tank: 65 lb (29 kg) Battery: 50 lb (23 kg) | 1,810 lb (820 kg) including electric standby Fuel tank: 65 lb (29 kg) Battery: 50 lb (23 kg) |
| Cooling Capacity at 100°F (38°C) Ambient | High-Speed Diesel or Electric Standby Operation: • 35°F (2°C): 58,000 BTU/hr (16,998 W) • 0°F (-18°C): 33,500 BTU/hr (9,818 W) • -20°F (-29°C): 22,000 BTU/hr (6,594 W) | Diesel Operation: • 35°F (2°C): 58,000 BTU/hr (16,998 W) • 0°F (-18°C): 33,500 BTU/hr (9,818 W) • -20°F (-29°C): 22,000 BTU/hr (6,594 W) |
| Evaporator Airflow | 3,100 CFM (5,270 m³/h) | 3,100 CFM (5,270 m³/h) |
