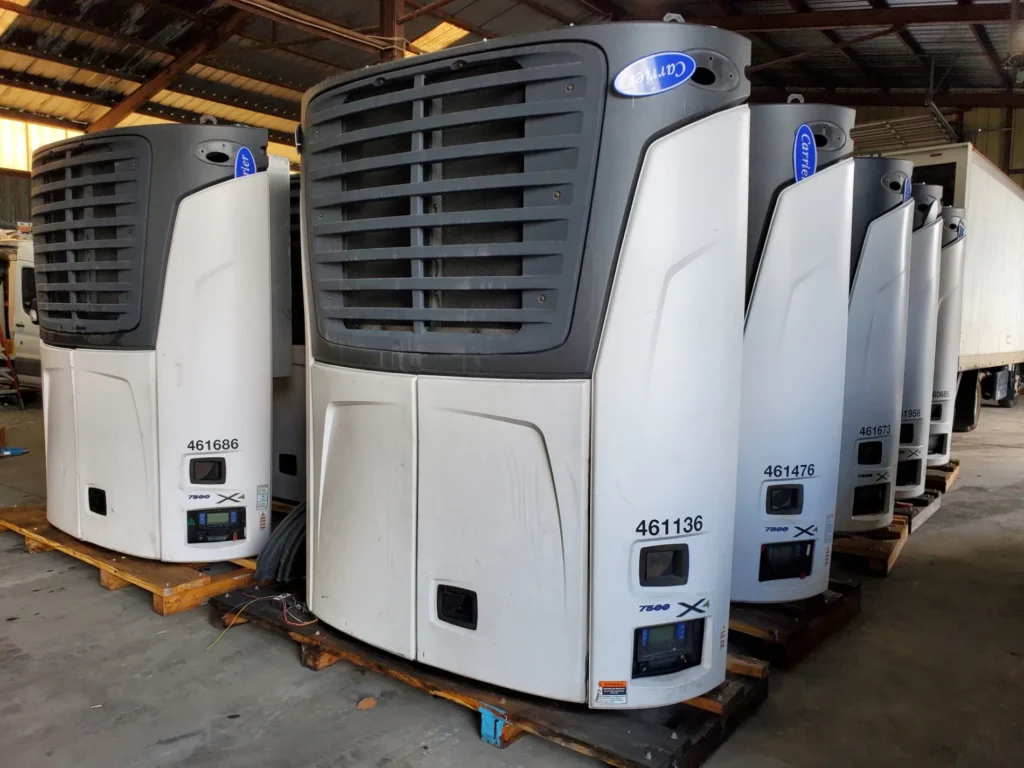

Carrier Transicold Vector X4™ 7500
The Carrier Transicold Vector X4 7500 is a cutting-edge carrier trailer refrigeration unit, engineered to deliver unmatched cooling performance for heavy-duty truck trailers and semi-trailers. With a maximum cooling capacity of 19,930 Watts at 35°F (2°C) evaporator return air temperature, this unit ensures precise temperature control for frozen, chilled, and perishable goods, even in extreme ambient conditions up to 100°F (38°C). Designed for reliability and efficiency, the Vector X4 7500 combines advanced technology with robust construction, making it an ideal carrier semi-trailer reefer unit for sale for global cold chain logistics.
Key Features:
Ultra-High Cooling Capacity:
- 19,930W at 35°F (2°C)
- 10,845W at 0°F (-18°C)
- 7,034W at -20°F (-29°C)
Heavy-Duty Design:
- Condenser Dimensions: 1,940×2,176×579 mm (76.4″×85.7″×22.8″)
- Evaporator Dimensions: 1,684×1,149×280 mm (66.3″×45.2″×8.2″)
- Weight: 767 kg (1,690 lb) + 29 kg (65 lb) fuel tank + 23 kg (50 lb) battery.
High Airflow Performance: 5,270 m³/hr (3,100 cfm) for rapid temperature stabilization.
Energy Efficiency: Optimized diesel operation with low fuel consumption.
ATP Compliance: Meets global cold chain standards for perishable transport.
Why Choose the Vector X4 7500?
- Durability: Reinforced aluminum fuel tank and corrosion-resistant components.
- Low Noise: Engineered for quiet operation in urban areas.
- Smart Controls: Advanced diagnostics for real-time performance monitoring.
| Parameter | Value |
|---|---|
| Cooling Capacity (35°F) | 19,930W (68,000 BTU/hr) |
| Cooling Capacity (-20°F) | 7,034W (24,000 BTU/hr) |
| Airflow | 5,270 m³/hr (3,100 cfm) |
| Condenser Dimensions | 1,940×2,176×579 mm |
| Evaporator Dimensions | 1,684×1,149×280 mm |
| Body Opening | 1,696×1,168 mm |
| Weight | 767 kg (1,690 lb) + accessories |
| Refrigerant | Eco-friendly options (e.g., R452A) |
Ideal For:
- Frozen Food Transport: Ideal for seafood, ice cream, and ready-to-eat meals.
- Pharmaceutical Logistics: Maintains ±0.5°C stability for vaccines and biologics.
- Fresh Produce & Floral: Extends shelf life for fruits, vegetables, and cut flowers.
- Cross-Continental Deliveries: Operates reliably in deserts, tropics, and polar regions.
| Specification | Vector X4 7700 | Vector X4 7500 |
| Condenser Dimensions | 76.4″ x 85.7″ x 22.8″ (1,940 x 2,176 x 579 mm) | 76.4″ x 85.7″ x 22.8″ (1,940 x 2,176 x 579 mm) |
| Evaporator Dimensions | 66.3″ x 45.2″ x 8.2″ (1,684 x 1,149 x 208 mm) | 66.3″ x 45.2″ x 8.2″ (1,684 x 1,149 x 280 mm) |
| Body Opening | 66.8″ x 46.0″ (1,696 x 1,168 mm) | 66.8″ x 46.0″ (1,696 x 1,168 mm) |
| Approximate Weight | 1,690 lb. (767 kg) | 1,690 lb. (767 kg) |
| Remote 50-Gallon Aluminum Fuel Tank | 65 lb. (29 kg) | 65 lb. (29 kg) |
| Battery | 50 lb. (23 kg) | 50 lb. (23 kg) |
| Cooling Capacity – Return Air Temp. 35°F (2°C) | 68,000 BTU/hr 19,930 Watts | 68,000 BTU/hr 19,930 Watts |
| Cooling Capacity – Return Air Temp. 0°F (-18°C) | 37,000 BTU/hr 10,845 Watts | 37,000 BTU/hr 10,845 Watts |
| Cooling Capacity – Return Air Temp. -20°F (-29°C) | 24,000 BTU/hr 7,034 Watts | 24,000 BTU/hr 7,034 Watts |
| Evaporator Airflow | 3,100 cfm (5,270 m³/hr) | 3,100 cfm (5,270 m³/hr) |
